MICROSONIC specializes in ultrasonic fill level sensors for non-contact level measurement, when
used for chemically aggressive liquids or solids.
Sensors are built in SS, with a PTFE film coat, are pressure resistant and with very high corrosion
resistance. Hence they allow for reliable functioning in highly corrosive environments.

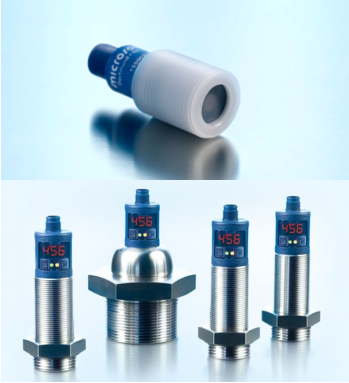

SERIES : pico+TF hps+
Stainless steel or PVDF body sensors for use under normal or high pressure (For hps+ up to 6 Bar)
With MICROSONIC Teach-In and synchronization.
•
PTFE membrane for the pico+TF sensors helps protect against aggresive materials
•
Body sleeve size of M22/M30 with integrated plug connection or G1 connection
•
Detection range of 30mm to 8000mm maximum for hps+
•
Output switch type options of 1 x pnp/npn, 2 x pnp/npn, Analogue 4-20mA / 0-10V outputs
•
IO Link is an additional option for the pico+TF
•
Ingress protection ratings of up to IP67 as per IEC EN 60529
•
Operating voltage range of 9V - 30V DC with reverse polarity protection
•
Internal temperature drift compensation
•
Stainless steel body and cable type connections on request
•
CE certified
ULTRASONIC FILL LEVEL DETECTION SENSORS FOR AGGRESSIVE
CHEMICALS AND SOLIDS
*Refer to manufacturer data sheet for detailed technical evaluation and installation/operation instructions. Data is given for illustration purposes only and does not absolve the end user from
independent application suitability tests.
ULTRASONIC FILL LEVEL DETECTION SENSORS

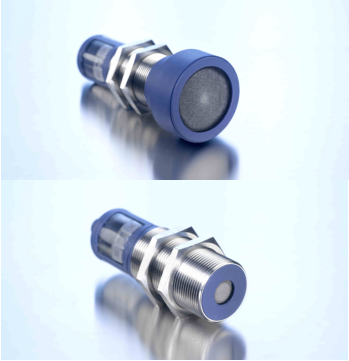

SERIES : crm+
Stainless steel body sensors with digital display with direct measured value output
With MICROSONIC Teach-In using T1 or T2 buttons
•
Ultrasonic transducer protected by a PEEK film coating
•
Water resistant PEEK film protects sensor membrane from chemicals & contamination
•
5 detection ranges from 30mm to 8000mm maximum
•
Output switch type options of 1 x pnp/npn, 2 x pnp/npn, Analogue 4-20mA / 0-10V outputs
•
IO Link for new industry standard and LinkControl for sensor configuration by a PC
•
Ingress protection ratings of up to IP67 as per IEC EN 60529
•
Operating voltage range of 9V - 30V DC with reverse polarity protection
•
Internal temperature drift compensation
•
UL listed & CE certified
AVLICON TECHNOLOGIES
powering your moments
MICROSONIC specializes in ultrasonic fill level
sensors for non-contact level measurement,
when used for chemically aggressive liquids or
solids.
Sensors are built in SS, with a PTFE film coat,
are pressure resistant and with very high
corrosion resistance. Hence they allow for
reliable functioning in highly corrosive
environments.
*Refer to manufacturer data sheet for detailed
technical evaluation and installation/operation
instructions. Data is given for illustration
purposes only and does not absolve the end
user from independent application suitability
tests.
ULTRASONIC FILL LEVEL DETECTION
SENSORS
SERIES : pico+TF hps+
Stainless steel or PVDF body sensors for use
under normal or high pressure (For hps+ upto
6 Bar) .With MICROSONIC Teach-In and
synchronization
•
PTFE membrane for the pico+TF sensors
helps protect against aggresive materials
•
Body sleeve size of M22/M30 with
integrated plug connection or G1 connection
•
Detection range of 30mm to 8000mm
maximum for hps+
•
Output switch type options of 1 x pnp/npn,
2 x pnp/npn, Analogue 4-20mA / 0-10V
outputs
•
IO Link is an additional option for the
pico+TF
•
Ingress protection ratings of up to IP67 as
per IEC EN 60529
•
Operating voltage range of 9V - 30V DC
with reverse polarity protection
•
Internal temperature drift compensation
•
Stainless steel body and cable type
connections on request
•
CE certified
FILL LEVEL DETECTION ULTRASONIC
SENSORS FOR CHEMICALS & SOLIDS
SERIES : crm+
Stainless steel body sensors with digital display
with direct measured value output. With
MICROSONIC Teach-In using T1 or T2 buttons
•
Ultrasonic transducer protected by a PEEK
film coating
•
Water resistant PEEK film protects sensor
membrane from chemicals & contamination
•
5 detection ranges from 30mm to 8000mm
maximum
•
Output switch type options of 1 x pnp/npn,
2 x pnp/npn, Analogue 4-20mA / 0-10V
outputs
•
IO Link for new industry standard and
LinkControl for sensor configuration by a PC
•
Ingress protection ratings of up to IP67 as
per IEC EN 60529
•
Operating voltage range of 9V - 30V DC with
reverse polarity protection
•
Internal temperature drift compensation
•
UL listed & CE certified
