MICROSONIC produces ultrasonic web edge detection sensors meant for non-contact detection of papers, foils and other sound proof materials. A unique fork design sensor is suited for high speed detection of labels / splices or web break monitoring. A double sheet detection sensor looks for a extra sheet in the materials being scanned. For example wafer slices or sheets mistakenly bonded together.

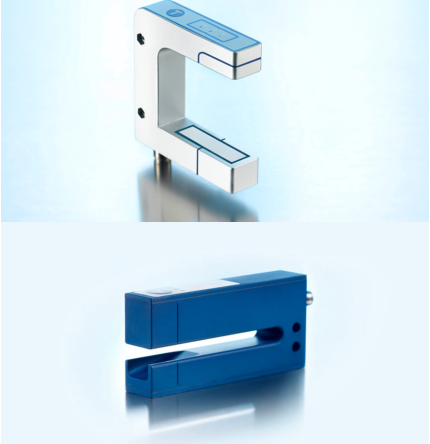

SERIES : bks+ bks esf esp Metallic or plastic body sensors with simplified Teach-In process and Smart Sensor profile • Robust and compact size for housing. For select models with M12 or M18 body sleeve • For use at high web speeds (select models) • Output switch type of Push-Pull or Analogue 4-20mA / 0-10V • IO Link option with synchronization input • Splice detection for thick band materials • Contact free detection for path edge • Ingress protection ratings of up to IP65 as per IEC EN 60529 • Operating voltage range of 20V - 30V DC with reverse polarity protection • CE certified

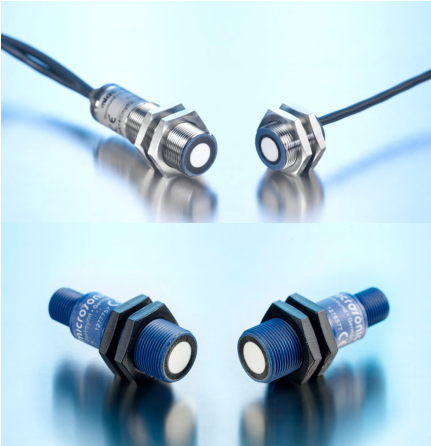

SERIES : dbk+4 dbk+5 ews Metallic or plastic body sensors with double and missing sheet output for reliable detection • Body sleeve size of M12 or M18 in nickel plated brass or PBT with integrated plug connection • Working distance between emitter and receiver selectable between 20mm-70mm • Output switch type of 2 x pnp/npn or Analogue 4-20mA / 0-10V outputs • IO Link option for select models • Ingress protection ratings of up to IP67 as per IEC EN 60529 • Operating voltage range of 20V - 30V DC with reverse polarity protection • With built-in 1.2 mtr standard cable length (for select models) • With angular head and Teach-In option • For ews series, distance between emitter & receiver selectable between 10mm-2500mm • CE certified

*Refer to manufacturer data sheet for detailed technical evaluation and installation/operation instructions. Data is given for illustration purposes only and does not absolve the end user from independent application suitability tests.


