MICROSONIC offers ultrasonic distance measurement sensors in both cylindrical and cuboid versions. Some models are produced with digital displays showing direct measured output values. Stainless steel body sleeve and/or angular versions are available for specific models.

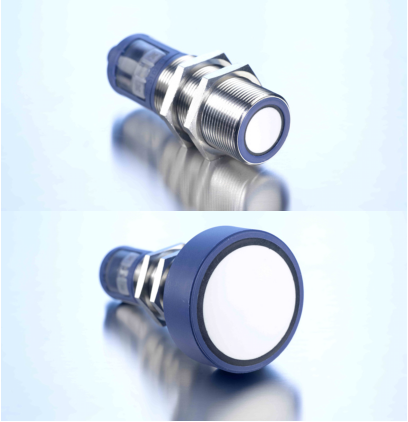

SERIES : mic+ mic wms Metallic body sensors with five different detection ranges. WMS sensors are typically used to connect with wms controllers. With MICROSONIC Teach-In and automatic synchronization. • Body sleeve size of M30 in nickel plated brass with integrated plug connection • Detection range of 30mm to 8000mm max • Output switch type of 1 x pnp/npn, 2 x pnp/npn or Analogue 4-20mA / 0-10V or Trigger Input/Echo outputs • IO Link is an additional option for the mic+ series • Ingress protection ratings of up to IP67 as per IEC EN 60529 • Operating voltage range of 9V - 30VDC with reverse polarity protection • Internal temperature drift compensation • Stainless steel body and cable type connections on request • UL Listed and CE certified

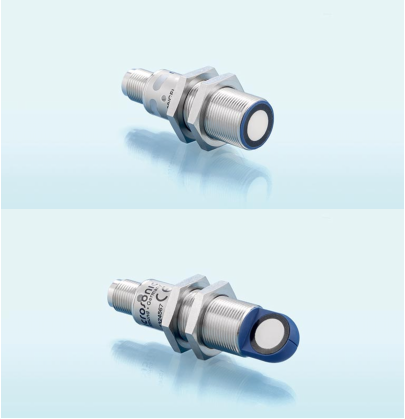

SERIES : lpc+ nero pico+ Metallic or plastic body sensors with four different detection ranges and multi operation modes. With Teach-In and improved temperature compensation. • Body sleeve size of M18 in nickel plated brass or PBT with integrated plug connection • Detection range of 20mm to 1300mm max • Output switch type of 1 x pnp/npn, 2 x pnp/npn or Analogue 4-20mA / 0-10V outputs • IO Link is an additional option for the lpc+ and pico+ series • Ingress protection ratings of up to IP67 as per IEC EN 60529 • Operating voltage range of 9V - 30VDC with reverse polarity protection • Internal temperature drift compensation • With angular head option • UL Listed and CE certified

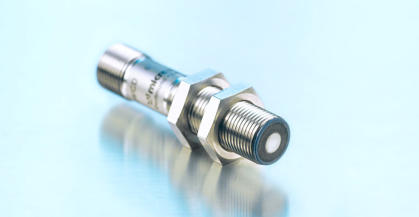

SERIES : nano Metallic body sensors with 2 different detection ranges, in the smallest size body size of just 55mm. With a narrow sound field, Teach-In & improved temperature compensation. • Body sleeve size of M12 in nickel plated brass with integrated plug connection • Detection range of 20mm to 350mm max • Output switch type of 1 x pnp/npn or Analogue 4-20mA / 0-10V outputs • Ingress protection ratings of up to IP67 as per IEC EN 60529 • Operating voltage range of 10V - 30VDC with reverse polarity protection • Internal temperature drift compensation • UL Listed and CE certified

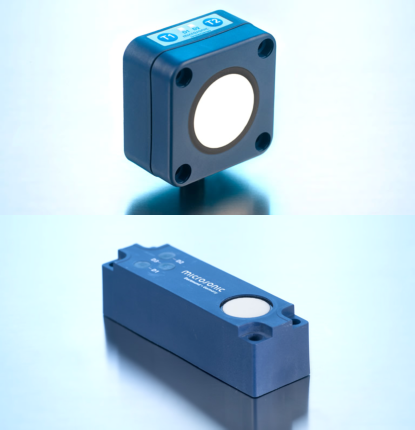

SERIES : lcs+ lcs Non metallic PBT body with 3 different detection ranges. With MICROSONIC Teach-In and temperature compensation. • Body size of 62x62x37mm / 109x30x27mm with integrated plug connection • Detection range of 30mm to 8000mm max • Output switch type of 1 x pnp, 2 x pnp, 3 x pnp or Analogue 4-20mA / 0-10V output • Ingress protection ratings of up to IP67 as per IEC EN 60529 • Operating voltage range of 9V - 30VDC with reverse polarity protection • Internal temperature drift compensation • Synchronization and multiplex modes • UL Listed and CE certified

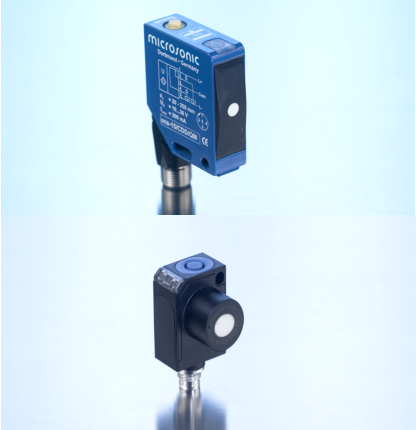

SERIES : sks ucs zws PBT ot Metallic miniature body with 3 different detection ranges. With MICROSONIC Teach-In and temperature compensation. Suitable for replacement of a wide range of optical sensors. • Suitable for critical and harsh environment • Detection range of 30mm to 1000mm max • Output switch type of 1 x pnp, 2 x pnp or Analogue 4-20mA / 0-10V outputs • Ingress protection ratings of up to IP67 as per IEC EN 60529 • Operating voltage range of 10V - 30VDC with reverse polarity protection • Internal temperature drift compensation & IO Link support • Synchronization mode and fast sampling • CE certified

*Refer to manufacturer data sheet for detailed technical evaluation and installation/operation instructions. Data is given for illustration purposes only and does not absolve the end user from independent application suitability tests.


