DBK manufactures PTC based heaters in surface and DIN rail mount versions for safe and precise thermal management of control panel cabinets.

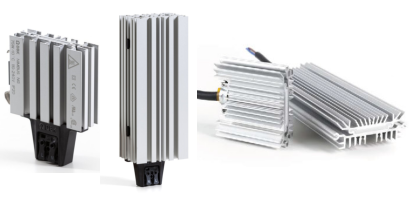

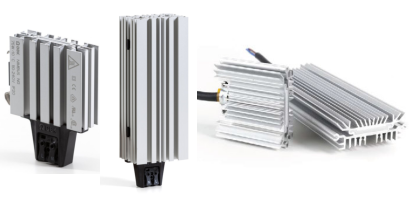

RAIL MOUNT - NIMBUS SERIES • Natural convection heating • Open type heater design or with Touch Safe cover • Spring clamp terminal block or cable option • Power output range of 20W / 30W / 50W 75W / 100W / 125W / 150W / 175W / 240W • Input voltage of 110V / 230V AC/DC • Compact size, light weight with high power density

SURFACE MOUNT - CANYON SERIES • Natural convection heating • Powder coated steel housing • Spring clamp terminal block for cable size of 0.5-2.5mm² • Power output range of 100W / 200W • Input voltage of 110V / 230V AC

RAIL / SURFACE MOUNT - TYPHOON EC SERIES • Forced convection heating fan heating • Powder coated steel housing • Spring clamp terminal block for cable size of 0.5-2.5mm² • Power output range of 200W / 400W / 800W • Input voltage of 110V / 230V AC • Optional DIN rail mount clip attachment • Ultra compact design with high power density

All trademark / brand names / logos / images are the exclusive registered property of DBK Group. Unauthorized use is prohibited. Images are for reference only. Subject to change without notice. Data is given for illustration purposes only and does not absolve the end user from independent application suitability tests.

FEATURES OF PANEL SPACE HEATERS: • Dynamic PTC heating technology • Heating and temperature limiting combined in a single unit • Self regulating feature based on ambient temperature ensures complete safety in operation • No fire hazard in case of failure • Natural or forced convection heating options, based on volume of control panel cabinets • Surface & din rail mount variants with Open or Touch Safe (metal or thermoplastic) body • Screw or Spring clamp connectors for easy and reliable connections • Operating voltages of 12V DC, 24V AC/DC, 48VDC, 110V AC/DC, 240V AC/DC • Electrical protection is rated for Class II • Use a time delay fuse to prevent false trip on a cold start • Ensure adequate safety clearances around the heater during installation • For ambient temperature of 25°C, power output will decrease by 10-20% approximately, depending on selected model

SURFACE MOUNT - FOEHN SERIES • Natural convection heating • Stainless steel guard with integrated screw terminal • Power output range of 50W / 100 / 150W • 5 mm slot on side flange for mounting • Input voltage of 110V / 230V AC

Important Notes: • Not suitable for use in wet and permanently aggressive or corrosive environments • For heater operation at 110V, the power output will drop approximately by 10% • Power outputs are specified for ambient temperature of 10°C. • For ambient temperature of -25°C, power output will increase by 10-20% approximately, depending on selected model • Use a time delay fuse to prevent false trip on a cold start • Ensure adequate safety clearances around the heater during installation • For ambient temperature of 25°C, power output will decrease by 10-20% approximately, depending on selected model

RAIL MOUNT - BLIZZARD SERIES • Natural convection heating • Heater with Touch Safe PET cover • Spring clamp terminal block • Power output range of 40W / 65W • Input voltage of 110V / 230V AC/DC

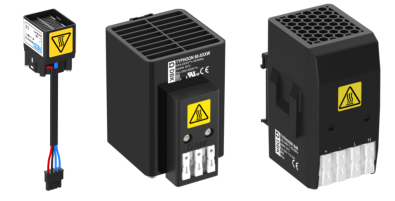

RAIL MOUNT - TYPHOON SERIES • Natural convection or forced fan heating • Open type heater design or with Touch Safe option • Spring clamp terminal block or cable option • For select models, fan connection is separate • Power output range of 20W / 40W / 80W 100W / 200W / 300W / 400W / 500W • Input voltage of 24VAC/DC or 110V / 230V AC/DC • Compact size with high power density

RAIL / SURFACE MOUNT - X-FLOW SERIES • Forced convection heating with centrifugal impeller • Low profile heater design with powder coated metal cover • Spring clamp terminal block • Low noise fan • Power output range of 400W / 800W • Input voltage of 110V / 230V AC/DC. 48VDC version available on request • Detachable DIN rail clip attachment

SURFACE MOUNT - X1WT SERIES • Forced convection fan heating • Light weight Touch Safe design • Screw terminal block • For select models, fan connection is separate • Power output range of 1000W / 1300W • Input voltage of 110V / 230V AC/DC • With built in adjustable thermostat
