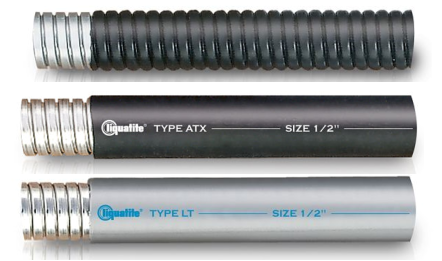

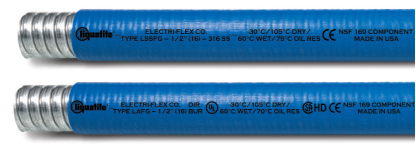

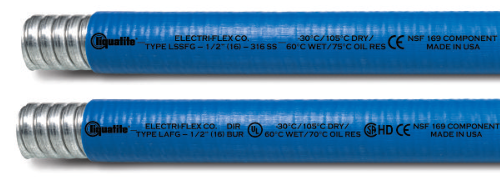

ELECTRI-FLEX manufactures a range of heavy duty liquid tight flexible metallic conduits,

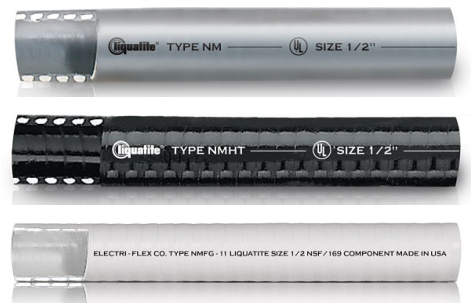

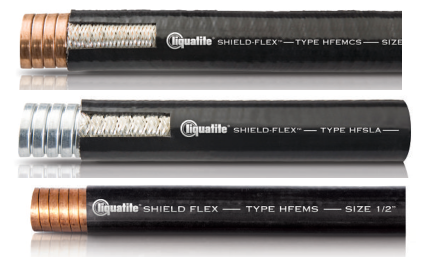

liquid tight type B non-metallic PVC flexible conduits and EMI RFI Shielded liquid
tight flexible metallic conduits, under the LIQUATITE® and SHIELD-FLEX® brand.
Cable protection is an important aspect for any electrical installation. These PVC coated
flexible metal conduits offer complete protection from atmospheric and external elements,
to power & data cables. Compliance to global industry standards ensure zero compromise
on build quality & performance in the field.
This flexibility allows the installer to weave the cables around bends or odd shaped spaces,
saving precious time & costs. Specific variations of these flexible conduits are compliant for
use in hazardous locations. Refer to below list for details.
As an authorized distribution partner for Electri-Flex products in India, we can assist you in
making the right choice of conduits for your application.
SHIELD-FLEX® and Liquatite® are registered trademarks
of the Electri-Flex Company
*Customized color options for liquid tight conduits are available on request. MOQ may apply.
LIQUATITE FLEXIBLE ELECTRICAL CONDUITS
Classification of Hazardous Zones For Liquid Tight Flexible Conduits : For select parts only
These conduits are intended for use according to the Canadian Electrical Code (CEC CSA 22.1-18) as described in clause 12-1300 for dry, damp or wet locations.
•

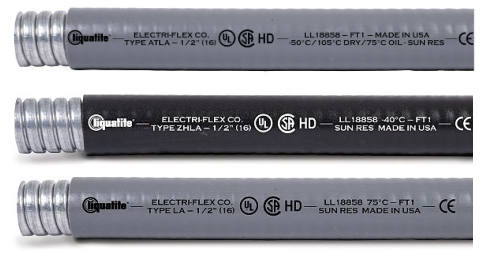

Conforms to CSA C22.2 No. 56-17 Annex A “Heavy Duty”
•
Conduits compliant to Heavy Duty are marked “HD”
•
Suitable as a grounding conductor when used for circuits rated up to 20A
for the 3/8 & 1/2 inch trade sizes and 60A for the 3/4 through 1-1/4 inch
trade sizes in lengths six feet or less per NEC Article 250.118(6). Larger
sizes require separate grounding conductor.
1.
For use in hazardous locations listed under UL
Class I Div.2: article 501.10 (B)(2) and 501.30 (B)
Class II Div.1: Article 502.10 (A)(2) and 502.30 (B) Div.2: 502.10 (B)(2)
Class III Div.1: Article 503.10 (A)(3) and 503.30 (B) Div.2: 503.10 (B)
1.
For use in hazardous locations listed under CEC CSA 22.1-18: Clause 12-1300
Class I Div 2: CSA 22.1 J18-152 (1)(i)
Class II Div 1: CSA 22.1 J18-204 (4)(b)
Class II Div 2: CSA 22.1 J18-254 (1)(h)
Class III Div 1: CSA 22.1 J18-304 (1)(f)
Class III Div 2: CSA 22.1 J18-354 (h)
2.
Zone 2: CSA 22.1 18-152 (1)(h)
Zone 20: CSA 22.1 18-192 (3)(a)
Zone 21: CSA 22.1 18-202 (4)(a)
Zone 22: CSA 22.1 18-252 (1)(h)
Back To > Products
LIQUATITE® Liquid Tight Flexible Conduits For Cable Protection
AVLICON TECHNOLOGIES
powering your moments
ELECTRI-FLEX manufactures a range of UL listed
liquid tight flexible metallic conduits, liquid tight
type B non-metallic PVC flexible conduits and

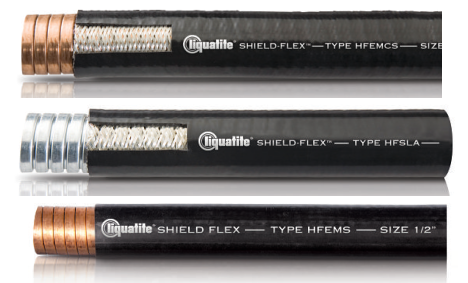

EMI RFI Shielded liquid tight flexible metallic
conduits.
Cable protection is an important aspect for any
electrical installation. These PVC coated flexible
metal conduits offer complete protection from
atmospheric and external elements, to power &
data cables. Compliance to global industry
standards ensure zero compromise on build
quality & performance in the field.
This flexibility allows the installer to weave the
cables around bends or odd shaped spaces,
saving precious time & costs.
As an authorized distribution partner for
Electri-Flex products in India, we can assist you
in making the right choice of conduits for your
application.
SHIELD-FLEX® and Liquatite® are registered
trademarks of the Electri-Flex Company
*Customized color options on request. MOQ
may apply.
LIQUATITE®
FLEXIBLE ELECTRICAL CONDUITS
Classification of Hazardous Zones For
Liquid Tight Flexible Conduits : For select
parts only
These conduits are intended for use according to
the Canadian Electrical Code (CEC CSA 22.1-18)
as described in clause 12-1300 for dry, damp or
wet locations.
•
Conforms to CSA C22.2 No. 56-17 Annex A
“Heavy Duty”
•
Conduits compliant to Heavy Duty are
marked “HD”
•
Suitable as a grounding conductor when used
for circuits rated up to 20A for the ⅜” & ½”
trade sizes and 60A for the ¾” through 1-¼”
trade sizes in lengths six feet or less per NEC
Article 250.118(6). Larger sizes require
separate grounding conductor.
1.
For use in hazardous locations listed under UL
Class I Div.2: article 501.10 (B)(2) and
501.30 (B)
Class II Div.1: Article 502.10 (A)(2) and
502.30 (B) Div.2: 502.10 (B)(2)
Class III Div.1: Article 503.10 (A)(3) and
503.30 (B) Div.2: 503.10 (B)
2.
For use in hazardous locations listed under
CEC CSA 22.1-18: Clause 12-1300
Class I Div 2: CSA 22.1 J18-152 (1)(i)
Class II Div 1: CSA 22.1 J18-204 (4)(b)
Class II Div 2: CSA 22.1 J18-254 (1)(h)
Class III Div 1: CSA 22.1 J18-304 (1)(f)
Class III Div 2: CSA 22.1 J18-354 (h)
3.
Zone 2: CSA 22.1 18-152 (1)(h)
Zone 20: CSA 22.1 18-192 (3)(a)
Zone 21: CSA 22.1 18-202 (4)(a)
Zone 22: CSA 22.1 18-252 (1)(h)
