ERIM manufactures low voltage insulator standoff’s and UL listed bus bar insulator systems. Products are offered under the ERIB brand. These compression molded insulators are produced from high grade polyester materials with fibreglass reinforcement in order to maintain the mechanical and electrical performance of the final product. The raw materials used are UL certified and fire tested to EN 45545-2 requirements R22/R23 for level HL2/HL3 for railway grade insulators. The metallic inserts are produced from brass (with stainless steel option) and the final product is also UL certified with fire retardency of UL94-V0. The final products are tested for electrical breakdown strength as per EN 61489-2. Due to such stringent manufacturing and testing standards incorporated during production, ERIB products have longer life in spite of being exposed to electrical, heat and mechanical shocks during operation. Download a copy of the product catalog to review details of products offered.
Conical Bus Bar Insulator Cylindrical Bus Bar Insulator Pass Through Insulator Disc Insulator
Spacing Stud Bolts Insulators: CO/P series of standoff insulators are manufactured with a cylindrical shape. Height range is from 16mm up to 100mm. Insert thread sizes range from M4 to M16. NPT threads are offered on request. Rated operating voltages are from 220V to 8kV, depending on size of the insulator. Operating temperature range for this type is -40°C to 130°C.

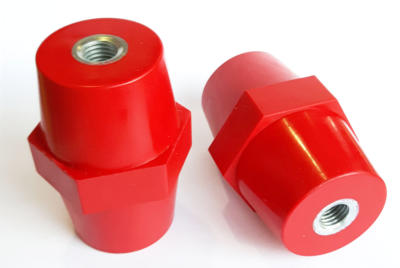

Standoff Insulators: DB/P series of standoff insulators are manufactured with a inverted cone shape. Height range is from 12mm up to 100mm. Insert thread sizes range from M3 to M16. NPT threads are offered on request. Rated operating voltages are from 220V to 8kV, depending on size of the insulator. Operating temperature range for this type is -40°C to 130°C.

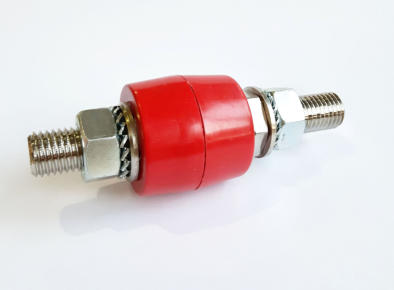

Pass Thru Insulators: PI/P series of passing insulators are manufactured with two separate sections which fit into each other. This construction helps to safely pass electricity through a cabinet wall to the other side. Length range is from 50mm up to 155mm. The bolt is produced in nickel plated brass with galvanized steel washers and nuts, with threads of M4 to M20. Rated operating voltages are from 600V to 2kV, depending on size of the insulator. Operating temperature range for this type is -40°C to 130°C.

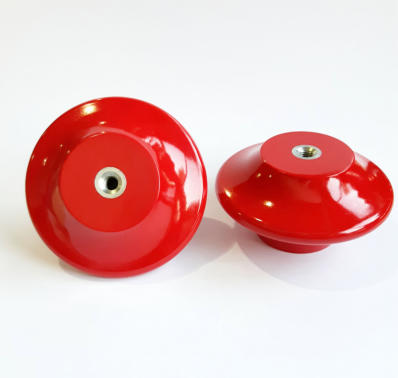

Disc Insulators: I2IC series of disc type insulators are primarily for use in higher voltages from 5kV to 30kV, based on a combination structure. These type of insulators are also known as petticoat insulators. Height range is from 52mm up to 260mm with a maximum operating voltage of 7.2kV up to 36kV. Operating temperature range for this type is -40°C to 130°C.
ERIM logo cert logo
Listed below are some of the most widely used insulator types. All standard order parts are provided with nickel plated brass inserts with female threads. On request, the insulators can be produced with a male thread also.

UL LISTED BUS BAR STANDOFF INSULATORS
Back To > Products
AVLICON TECHNOLOGIES
powering your moments
ERIM manufactures low voltage insulator standoff’s and UL listed bus bar insulator systems. Products are offered under the ERIB brand. These compression molded insulators are produced from high grade polyester materials with fibreglass reinforcement in order to maintain the mechanical and electrical performance of the final product. The raw materials used are UL certified and fire tested to EN 45545-2 requirements R22/R23 for level HL2/HL3 for railway applications. The metallic inserts are produced from brass (with stainless steel option) and the final product is also UL certified with fire retardency of UL94-V0. The final products are tested for electrical breakdown strength as per EN 61489-2. Due to such stringent manufacturing and testing standards incorporated during production, ERIB products have longer life in spite of being exposed to electrical, heat and mechanical shocks during operation. Download a copy of the product catalog to review details of products offered.
ERIM Conical Bus Bar Insulator ERIM Cylindrical Bus Bar Insulator ERIM Pass Thru Insulator ERIM Petticoat Insulator
Spacing Stud Bolts Insulators: CO/P series of standoff insulators are manufactured with a cylindrical shape. Height range is from 16mm up to 100mm. Insert thread sizes range from M4 to M16. NPT threads are offered on request. Rated operating voltages are from 220V to 8kV, depending on size of the insulator. Operating temperature range for this type is -40°C to 130°C.
Standoff Insulators: DB/P series of standoff insulators are manufactured with a inverted cone shape. Height range is from 12mm up to 100mm. Insert thread sizes range from M3 to M16. NPT threads are offered on request. Rated operating voltages are from 220V to 8kV, depending on size of the insulator. Operating temperature range for this type is -40°C to 130°C.
Pass Thru Insulators: PI/P series of passing insulators are manufactured with two separate sections which fit into each other. This construction helps to safely pass electricity through a cabinet wall to the other side. Length range is from 50mm up to 155mm. The bolt is produced in nickel plated brass with galvanized steel washers and nuts, with threads of M4 to M20. Rated operating voltages are from 600V to 2kV, depending on size of the insulator. Operating temperature range for this type is -40°C to 130°C.

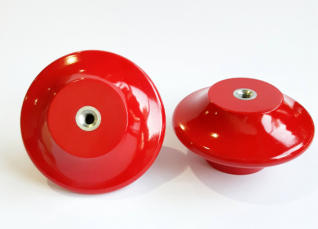

Disc Insulators: I2IC series of disc type insulators are primarily for use in higher voltages from 5kV to 30kV, based on a combination structure. These type of insulators are also known as petticoat insulators. Height range is from 52mm up to 260mm with a maximum operating voltage of 7.2kV up to 36kV. Operating temperature range for this type is -40°C to 130°C.
By ERIM SRL
Listed below are some of the most widely used insulator types. All standard order parts are provided with nickel plated brass inserts with female threads. On request, the insulators can be produced with a male thread also.
