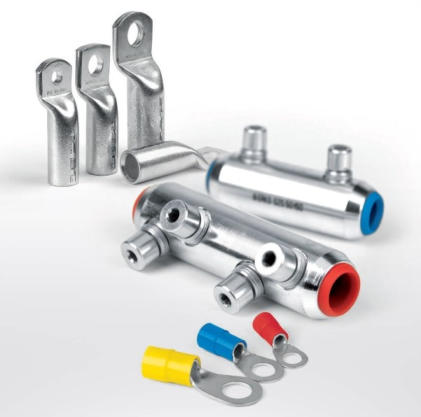

ERKO manufactures shear bolt cable connectors and terminals for use in 1kV to 36kV
applications, insulated copper lugs and cable accessories.
The basic range of copper lugs of insulated & non-insulated terminals are produced in
Ring, Fork and Pin type configurations, used for cable sizes up to 6.0 sq.mm.
The larger cable size compression terminals are generally produced in non-insulated,
ring type versions, with single or dual bolt options, long barrel lengths and bi-metallic
constructions.
ERKO produces a wide range of manual and battery operated hydraulic crimping tools,
for easy, precise & consistent crimping operation.
Write in to us to know more about solutions for your crimping needs.
Download a copy of the data sheet here.
Download a copy of the data sheet here.
Download a copy of the data sheet here.

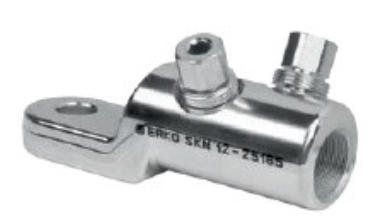

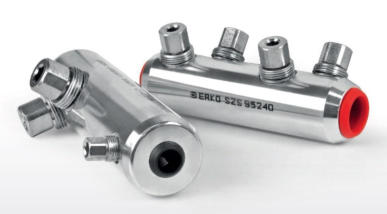

ERKO offers an excellent range of heavy duty shear bolt cable terminals, connectors and
accessories for use in low to medium voltage applications.
Certified to IEC 61238-1-3:2018 (ed.1.0) standards, they provide high reliability
terminations for both aluminum and copper cables operating up to 36kV. The connector
body is produced using a special aluminum alloy, which gives it excellent mechanical
strength and a dual protective coating offers high resistance to corrosion and atmospheric
conditions.
The cable is firmly clamped into the terminal connector by high strength tinned brass
bolt with shear heads. This ensures a tamper proof installation.

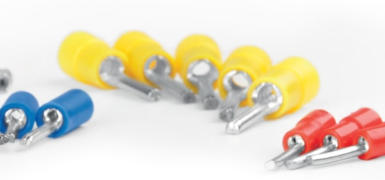

Insulated compression terminals are manufactured in tinned copper versions with a
polyamide insulation. Operating temperature range is from -40°C to 125°C. All parts
are built as per DIN 46237 standards. Insulation rating with a high fire resistance
rating of V0 is available on request.
These terminals are used with stranded copper wires. Choose the correct die-sets for
a reliable crimp connection.

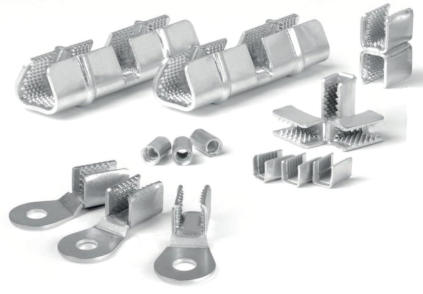

ERKO produces compression terminals for use with enameled wires using the innovative
SHARK technology. These connections completely eliminate the tedious process of
removing enamel coating of copper or aluminum wires, thus saving precious time and
costs, while forming a extremely reliable connection.
These terminals are suitable for both round and rectangular wire cores. This is a very
reliable option for motors and transformer manufacturing.
Different configurations are offered based on customer requirements.

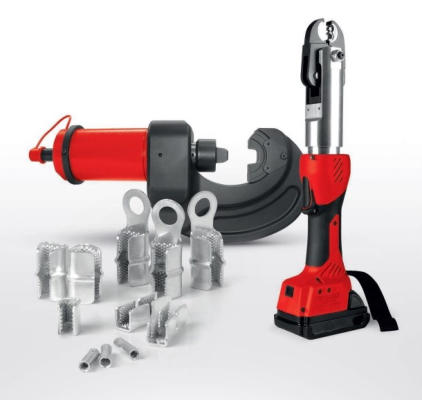

Compression terminals require high quality crimping tools to ensure a safe and reliable
connections. Consistency can only be achieved with a automatic tool designed for the job.
ERKO has Li-Ion battery powered hydraulic crimping tools with different die-sets designed
to suit each terminal type. These tools have safety features such as a automatic retraction
mode once pressure is achieved and auto-switch off once the crimping cycle is completed.
Options are available to store the crimping data and transfer via USB for storage or further
use. A LED visual indication is also provided to indicate an error cycle.
The tools are supplied with a spare battery set to ensure that you never run out of charge
while continuous working on-site. For high power options, separate hydraulic crimping heads
have to be connected to external power units.
Download a copy of the data sheet here.
Data is given for illustration purposes only and does not absolve the end user from independent application suitability tests.
SHEAR BOLT CABLE CONNECTORS - TERMINALS
Back To > Copper Aluminum Cable Terminals
36kV Shear Bolt Cable Terminals
AVLICON TECHNOLOGIES
powering your moments
ERKO manufactures heavy duty shear bolt
mechanical cable connectors and terminals,
compression copper lugs and accessories, for use
in low to medium voltage applications.
The basic range of copper lugs of insulated &
non-insulated terminals are produced in Ring,
Fork and Pin type configurations, used for cable
sizes up to 6.0 sq.mm.
The larger cable size compression terminals are
generally produced in non-insulated, ring type
versions, with single or dual bolt options, long
barrel lengths and bi-metallic constructions.
ERKO produces a wide range of manual and
battery operated hydraulic crimping tools,
for easy, precise & consistent crimping operation.
Write in to us to know more about solutions for
your crimping needs.
ERKO offers an excellent range of heavy duty
shear bolt cable terminals, connectors and
accessories for use in low to medium voltage
applications.
Certified to IEC 61238-1-3:2018 (ed.1.0)
standards, they provide high reliability
terminations for both aluminum and copper
cables operating up to 36kV. The connector
body is produced using a special aluminum alloy,
which gives it excellent mechanical strength and
a dual protective coating offers high resistance to
corrosion and atmospheric conditions.
The cable is firmly clamped into the terminal
connector by high strength tinned brass bolt with
shear heads. This ensures a tamper proof
installation.
Insulated compression terminals are manufactured
in tinned copper versions with a polyamide
insulation. Operating temperature range is from
-40°C to 125°C. All parts are built as per
DIN 46237. Insulation rating with a high fire
resistance rating of V0 is available on request.
These terminals are used with stranded copper
wires. Choose the correct die-sets for
a reliable crimp connection.
ERKO produces compression terminals for use
with enamelled wires using the innovative SHARK
technology. These connections completely
eliminate the tedious process of removing enamel
coating of copper or aluminum wires, thus saving
precious time and costs, while forming a
extremely reliable connection.
These terminals are suitable for both round and
rectangular wire cores. This is a very reliable
option for motors and transformer manufacturing.
Different configurations are offered based on
customer requirements.
Compression terminals require high quality
crimping tools to ensure a safe and reliable
connections. Consistency can only be achieved
with a automatic tool designed for the job.
ERKO has Li-Ion battery powered hydraulic
crimping tools with different die-sets designed
to suit each terminal type. These tools have
safety features such as a automatic retraction
mode once pressure is achieved and auto-switch
off once the crimping cycle is completed.
Options are available to store the crimping data
and transfer via USB for storage or further
use. A LED visual indication is also provided to
indicate an error cycle.
The tools are supplied with a spare battery set
to ensure that you never run out of charge
while continuous working on-site. For high
power options, separate hydraulic crimping
heads have to be connected to external units.
Data is given for illustration purposes only and does
not absolve the end user from independent application
suitability tests.
36kV SHEAR BOLT CABLE
TERMINALS
Back To > Copper Aluminum Cable
Terminals
