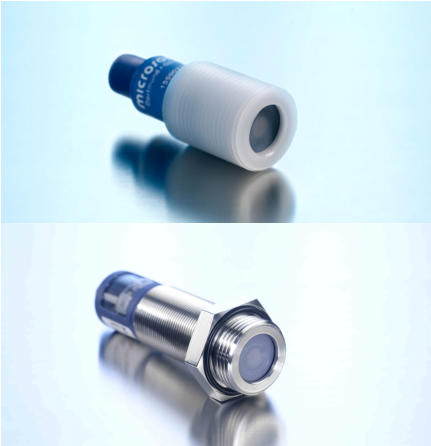

MICROSONIC specializes in ultrasonic fill level sensors for non-contact level measurement, when
used for chemically aggressive liquids or solids.
Sensors are built in SS, with a PTFE film coat, are pressure resistant and with very high corrosion
resistance. Hence they allow for reliable functioning in highly corrosive environments.
For Food & Pharma applications, a specially designed stainless steel housing without any crevices,
allows for repeated intensive wash downs and disinfection, while maintaining sensor performance.
VARIANT 1
SERIES : pico+TF crm+ hps+
Stainless steel or PVDF body sensors for use under normal or high pressure (up to 6 Bar)
With MICROSONIC Teach-In and synchronization.
•
Body sleeve size of M22/M30 with integrated plug connection or G1 connection
•
Detection range of 30mm to 8000mm maximum
•
Output switch type options of 1 x pnp/npn, 2 x pnp/npn, Analogue 4-20mA / 0-10V outputs
•
IO Link is an additional option for the pico+TF & crm+ series
•
Ingress protection ratings of up to IP67 as per IEC EN 60529
•
Operating voltage range of 9V - 30V DC with reverse polarity protection
•
Internal temperature drift compensation
•
Stainless steel body and cable type connections on request
•
CE certified
CHEMICAL AND HYGIENIC SENSORS
VARIANT 2
SERIES : pms
Stainless steel body sensors with four different detection ranges and multi operation modes.
With Teach-In and improved temperature compensation. Uses FDA compliant materials.
•
Innovative housing design with PTFE coating for ultra clean environments,
EHEDG & ECOLAB certified
•
Detection range of 20mm to 1300mm maximum
•
Output switch type options of 1xpnp/npn or Analogue 4-20mA / 0-10V outputs
•
IO Link option
•
Ingress protection ratings of up to IP68 as per IEC EN 60529
•
Operating voltage range of 10V - 30V DC with reverse polarity protection
•
Internal temperature drift compensation
•
Typically built for food and pharma industries
•
CE certified
*Refer to manufacturer data sheet for detailed technical evaluation and installation/operation instructions. Data is given for illustration purposes only and does not absolve the end user from
independent application suitability tests.
